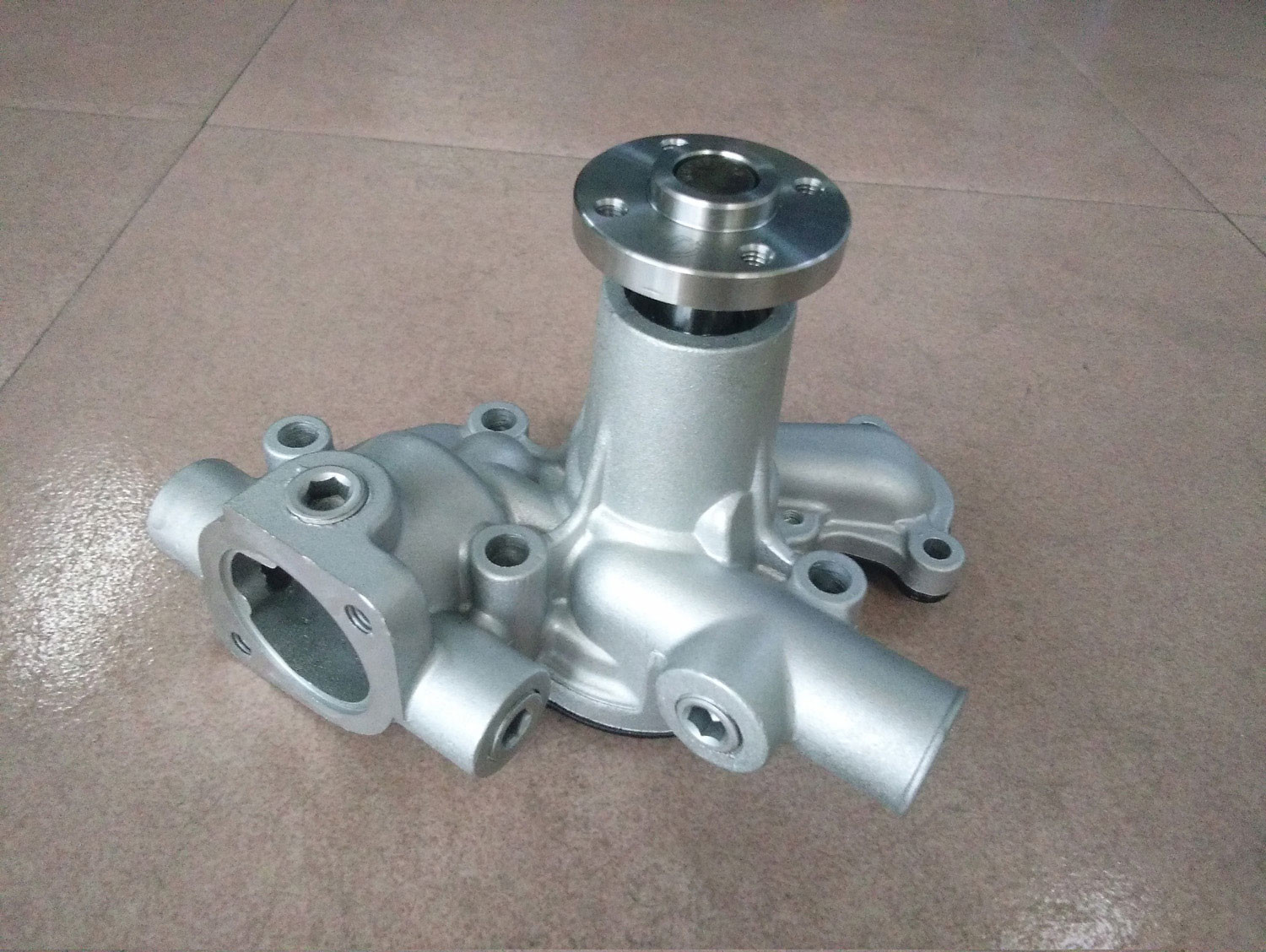

High Quality Manufacturer Yanmar Engine Parts 3D82 3TNE82 Water Pump 119810-42002
Excavator Spare Parts Yanmar Engine Parts 3D82 3TNE82 Water Pump Pumps For Excavator Diesel Engine
It can also transport liquids, gaseous mixtures and liquids
containing suspended solids. The technical parameters of water pump
performance include flow rate, suction range, head, shaft power,
water power and efficiency, etc.
According to different working principles can be divided into
positive displacement pumps, vane pumps and other types. Positive
displacement pump is to use the change of its working volume to
transfer energy; Vane pump is the use of rotary vane and water
interaction to transfer energy, centrifugal pump, axial flow pump
and mixed flow pump types.
The working principle of
1, positive displacement pump: use the working chamber volume cycle
change to transport liquid.
2, blade pump: the use of blade and liquid interaction to transport
liquid.
Fold and edit this section sample product
A centrifugal pump
General characteristics of centrifugal pump
(1) the flow direction of water along the centrifugal pump is axial
suction along the impeller, perpendicular to the axial outflow,
that is, in and out of the flow direction of each other at 90°.
(2) because the centrifugal pump forms a vacuum suction by the
impeller inlet, so before starting must be poured into the pump and
suction pipe water diversion, or vacuum pump pumping, in order to
exhaust air to form a vacuum, and the pump shell and suction pipe
must be strictly sealed, no air leakage, otherwise formed a vacuum,
also suction water.
(3) since it is impossible to form an absolute vacuum at the
impeller inlet, the suction height of the centrifugal pump should
not exceed 10 meters. With the loss of water flow along the suction
line, the actual allowable installation height (the height of the
pump axis from the suction surface) is much less than 10 meters. If
the installation is too high, it will not absorb water; In
addition, because the mountain area is lower than the atmospheric
pressure of the plain, so the same pump in the mountain area,
especially in the high mountain installation, the installation
height should be reduced, otherwise the water can not be sucked.
Advantages
Structure advantages
Simple structure, small volume, light weight, large amount of oil.
Cycloidal rotor pump system with internal and external rotor
meshing structure, the number of teeth, compact structure size,
without the help of other isolation elements can form a seal
chamber, the number of its parts are small.
| Parts name | Water Pump |
| Engine type | Diesel |
| Model | 3D82 3TNE82 |
| Place of Origin | China |
| Category Group | Engine parts |
| Equipment group | Construction equipment |
| Condition | New |
| MOQ | 1 pc |
| Structure: | Pump |
| Pressure: | High Pressure |
| Material: | Cast Iron |
| Fuel: | Diesel |
| Usage: | Water |
| Standard or Nonstandard: | Standard |
Our Advantages
FAQ
1. Experience in engine parts for over 15 years and served
customers all around the world.
2. We have the professional equipment for inspection and
measurement. Each piece should be strictly tested.
3. We have our own factory to provide you the competitive price
with a good quality.
4. With long history business, we have been enjoying a excellent
reputation in the market, it will save both the time and
after-service cost with doing business with us.
5. If you have any problem of your usage,we provide unlimited
service.
Other Model :
| engine piston | piston ring | cylinder liner/sleeves |
| liner kit | bearing set | valve&seat&guide |
| engine block | cylinder head | gasket kit/overhaul kit |
| head gasket | connecting rod | crankshaft |
| oil cooler | turbocharger | camshaft |
| pumps | fan cooling | engine assy |
| Cummins | A2300 B3.3 6BT 6CT QSB6.7 NH220 M11 NT855 K19 M11 |
| Yanmar | 4D84-1 4D84-2 4D84-3 4TNV88 4TNE88 4TNV94 4TNV98 4TNE98 4TNE94 |
| CAT | S6K-T 3306 3116 3126 C7 3204 3208 3406 C9 C-9 C4.2 320D |
| Mitsubishi | 4D30 4D34 6D34 S4E S6K 4M40 4D55 6D22 8DC9 4DR5 S6A S6B 6D31 6D14T 6D15T 6D16T 4D31T 6D24T 6D34 S4K |
| Hino | H07CT H06CT J05E J08E |
| Isuzu | 4JB1 4JG1 4LE1 4LE2 4BD1T 4BG1T C240 6WG1 6SD1 6BD1T 6BG1T 6RB1T
4HK1 6HK1 6RB1 |
| Daewoo | DB58 D1146 D2366 DE12T DE08T |
| Nissan | PD6 PE6 RD8 NE6 ND6 BD30 |
| Volvo | D6D D7D D10D D12D Volvo210 Volvo240 Volvo290 |
| Kubota | D1503 D1703 V2003 V2203 V2403 V3300 V3800 |
| Komatsu | 4D94 4D94E 4D95 4D105-1 4D105-3 4D120 6D95 6D102 S6D105 S6D125 S6D110 S6D108 S6D155 S6D130 S6D140 S6D170 S6D107 S6D114 |
